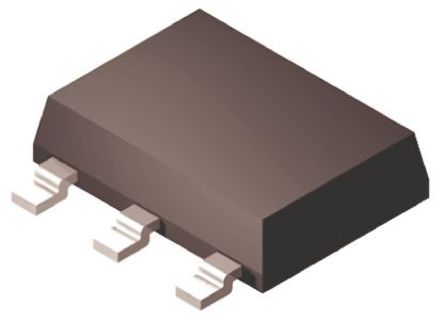

Image is for your reference only,please check specifications for details

NCP1117STAT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1631533
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1117STAT3G LDO Voltage Regulator, Adjustable, 3.5V to 20V in, 1.07V drop, 1.25V to 18.8V/1A out, SOT-223-3
Stock Locations:
Availability:
4,354 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1117STAT3G is a low-dropout adjustable Voltage Regulator that is capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.2V at 800mA over-temperature. It also includes an adjustable output version that can be programmed from 1.25 to 18.8V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±1% accuracy. Internal protection feature consists of output current limiting, safe operating area compensation and thermal shutdown.
Adjustable output voltage option
No minimum load requirement for fixed voltage output devices
Current limit, safe operating and thermal shutdown protection

Show

NCP1117STAT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Current Rating	1.00 A
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	16.2V (max)
Output Voltage	1.25V ~ 18.8V
Output Current	1 A
Supply Current	10 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	10 mA
voltage rating	1.07 V
Input Voltage (Max)	20 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	18.8 V
Output Voltage (Min)	1.25 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±1 %
Input Voltage	20 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.69 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
