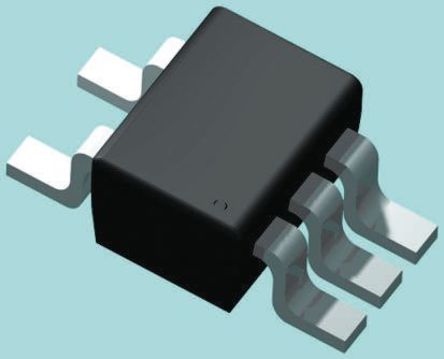

- NCP380HSN05AAT1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC15112000
-
Category:Power Distribution
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:USB Power SW USB Power Switch Single 5.5V 0.5A 5Pin TSOP T/R
-
Stock Locations:
-
Availability:64 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.5
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP380HSN05AAT1G is a high-side Power Distribution Switch designed for applications where heavy capacitive loads and short-circuits are likely to be encountered. The device limits the output current to a desired level by switching into a regulation current-mode when the output load exceeds the current-limit threshold or a short is present. The current limit threshold is either user adjustable between 100mA and 2.1A via an external resistor or internally fixed. The power switch rise and fall times are controlled to minimize current ringing during switching. An internal reverse-voltage detection comparator disables the power-switch if the output voltage is higher than the input voltage to protect devices on the input side of the switch. The /FLAG logic output asserts low during over current, reverse-voltage or over temperature conditions. The switch is controlled by a logic enable input active high or low.
- Adjustable and fixed current limit
- Under voltage lockout
- Built-in soft start
- Thermal protection
- Soft turn-off
- Reverse voltage protection
- Enable active high or low
NCP380HSN05AAT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.50 V |
| Number of Positions | 5 Position |
| Power Dissipation | 325 mW |
| Rise Time | 1000 µs |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.5 V |
| Output Current (Max) | 1 A |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 325 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
