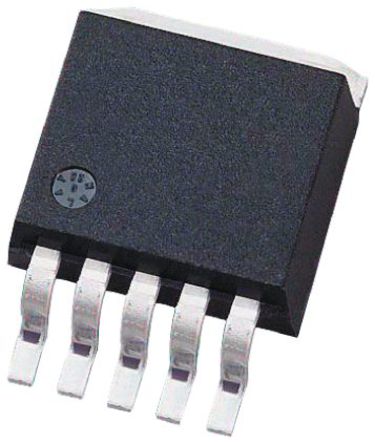

NCP4632DDT33T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC47693126
Category:
Voltage Regulator
Package:
TO-252-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP4632DDT33T5G Fixed LDO Voltage Regulator, 1.6V to 5.25V, 480mV Dropout, 3.3Vout, 3Aout, TO-252-5
Stock Locations:
Availability:
3,204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP4632DDT33T5G is a 3.3V fixed output CMOS Linear Regulator with high output current capability (up to 3A). This device can provide output voltages as low as 0.8V while maintaining a low-dropout (LDO) voltage of 510mV typ. at full load. The device is designed to draw only 350µA of supply current and less than 1µA in standby mode to minimize current consumption for battery operated applications. The device has a high accuracy output voltage of ±1% along with soft-start and reverse current protection circuits to protect the device and the application.
0.15%/V Line regulation (typical)
220mA Current fold back protection (typical)
Stable with ceramic capacitors

Show

NCP4632DDT33T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-6
Power Rating	3.8 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	3 A
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	3.8 W
Quiescent Current	450 µA
voltage rating	480 mV
Input Voltage (Max)	5.25 V
Input Voltage (Min)	1.6 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3800 mW
Accuracy	±1 %
Input Voltage	≤5.25 V
	Show
Size-Length	6.8 mm
Size-Width	2.5 mm
Size-Height	6.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
