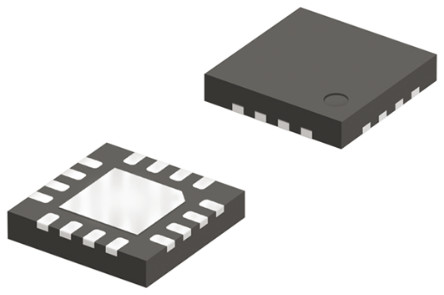

NCP5212AMNTXG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC46022996
Category:
Power Management IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP5212AMNTXG DC-DC Controller, 4.5V to 5.5V, 1 Output, Synchronous Buck, 300kHz, HQFN-16
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ensure that all of the components within your circuit design receive the proper DC voltage by using ON Semiconductor"s synchronous step down NCP5212AMNTXG DC voltage controller. With an output that has a voltage of 0.8 to 3.3 V, this is power management at its best. This DC voltage controller has single output. Its output produces a current of 5 A. This DC voltage controller has an input voltage of 4.5 to 27 V. You can operate this at a switching frequency of 330 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.

Show

NCP5212AMNTXG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Voltage (DC)	4.50V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.8V ~ 3.3V
Output Current	5 A
Number of Positions	16 Position
Switching Frequency	300 kHz
Topology	Step-Down
Input Voltage (Max)	27 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	0.8 V
Output Current (Max)	35 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 27V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 27V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
