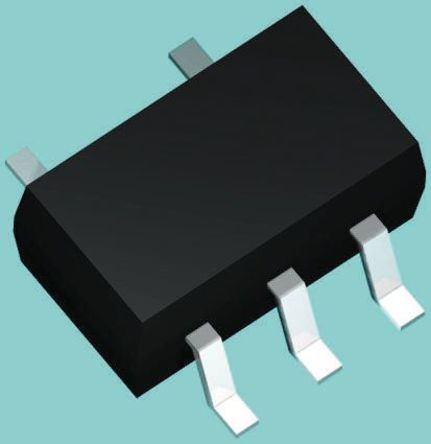

Image is for your reference only,please check specifications for details

NCS2200SQ2T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC13796611
Category:
Comparator, Analog Comparator IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCS2200SQ2T2G Analogue Comparator, Rail to Rail, Low Power, 1, 1.1µs, 850mV to 6V, SC-70, 5Pins
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS2200SQ2T2G is a Low Voltage Comparator consumes only 10A of supply current. It is guaranteed to operate at a low voltage of 0.85V which allows it to be used in systems that require less than 1V and is fully operational up to 6V which makes it convenient for use in both 3 and 5V systems. Additional features include no output phase inversion with overdriven inputs, internal hysteresis, which allows for clean output switching and rail-to-rail input and output performance.
No phase inversion with overdriven input signals
Glitchless transitioning in or out of tri-state mode
Complementary output configuration
1µs Propagation delay

Show

NCS2200SQ2T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	850mV (min)
Halogen Free Status	Halogen Free
Output Current	70.0 mA
Supply Current	0.015 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	70 dB
Thermal Resistance	283 ℃/W
Input Offset Voltage	5 mV
Input Bias Current	10 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.85V ~ 6V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
