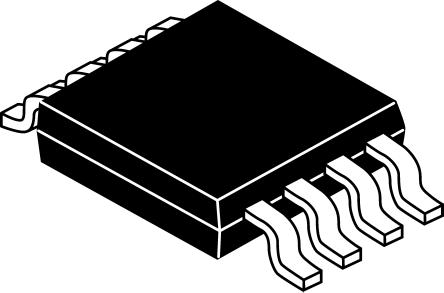

Image is for your reference only,please check specifications for details
- NCV33202DMR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC68886865
-
Category:Operational Amplifier, OP Amp IC
-
Package:Micro-8
-
Datasheet:Datasheet 3D Model
-
Description:NCV33202DMR2G, Dual Low Voltage Op Amp, 2.2MHz Rail-Rail, 1.8 - 12V, 8Pin MSOP
-
Stock Locations:
-
Availability:311 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **MC33201/2/4, NCV33202/4, 12V Low Noise, Rail-to-Rail I/O, High Output Drive, Operational Amplifiers, ON Semiconductor**
- The ON Semiconductor MC33201/2/4, NCV33202/4 Op Amps provide rail-to-rail operation on both the input and output. Drive inputs as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables you to make full use of the supply voltage range available. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Low noise and distortion with a high slew rate and drive capability make them ideal for audio applications.
NCV33202DMR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | Micro-8 |
| Halogen Free Status | Halogen Free |
| Supply Current | 1.125 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 90 dB |
| Gain Bandwidth Product | 2.2 MHz |
| Input Offset Voltage | 8 mV |
| Input Bias Current | 80 nA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | 60 dB |
| Supply Voltage (Max) | 12 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
