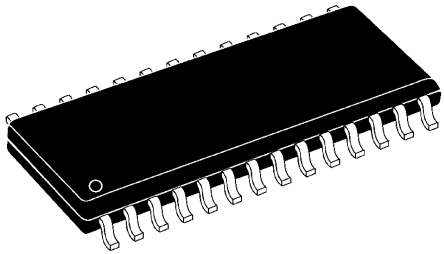

Image is for your reference only,please check specifications for details

NCV7708BDWR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10818663
Category:
Motor Driver
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV7708BDWR2G Motor Driver, Half Bridge, 3V to 5.5V supply, 500mA/6Outputs, WSOIC-28
Stock Locations:
Availability:
835 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.79

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This half bridge driver NCV7708BDWR2G stepper motor driver from ON Semiconductor is built to automate a variety of different machines, such as pumps and actuators. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This motor controller has a minimum operating temperature of -40 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5 V.

Show

NCV7708BDWR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Supply Voltage (DC)	3.00V (min)
Halogen Free Status	Halogen Free
Number of Outputs	6 Output
Output Current	500 mA
Number of Positions	28 Position
Switching Frequency	5 MHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 5.5V
	Show
Size-Length	18.05 mm
Size-Width	7.6 mm
Size-Height	2.36 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
