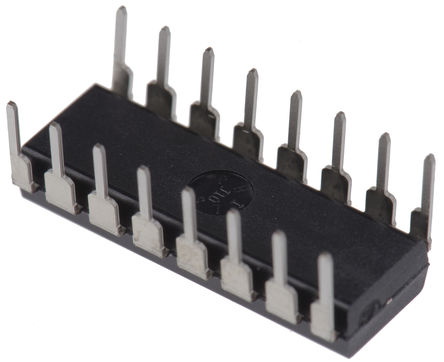

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bipolar Motor Driver Bipolar Parallel 16-DIP
NJM3717D2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 1 A |
| Supply Current | 25.0 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 4.75V ~ 5.25V |
| Show | |
| Size-Length | 19.18 mm |
| Size-Width | 6.35 mm |
| Size-Height | 5.33 mm |
| Operating Temperature | -20℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8542390000 |
| ECCN Code | EAR99 |
