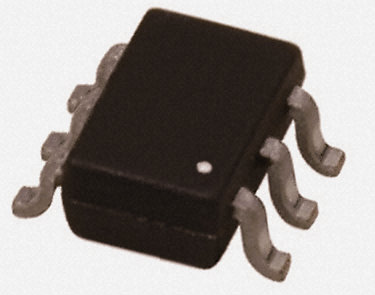

NL27WZ14DTT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9217444
Category:
Logic Control, Logic Gate IC
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NL27WZ14DTT1G Inverter, Schmitt Trigger, 2Input, 50mA, 1.65V to 5.5V, TSOP-6
Stock Locations:
Availability:
2,940 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**NL27W Series, ON Semiconductor**
CMOS Logic gates with LVTTL compatible inputs and outputs, offering higher speed and greater drive capability than 74LCX devices

Show

NL27WZ14DTT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Supply Voltage (DC)	2.50 V
Capacitance	2.5 pF
Halogen Free Status	Halogen Free
Output Current	50 mA
Number of Circuits	2 Circuit
Number of Positions	6 Position
Power Dissipation	200 mW
Quiescent Current	1 µA
Number of Gates	2 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
