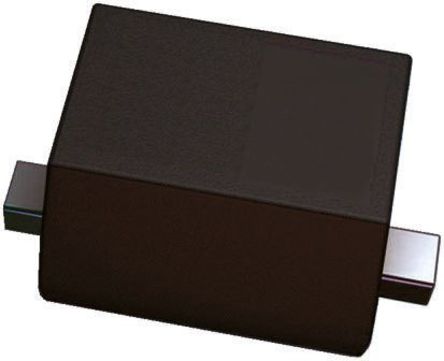

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NSR0520V2T1G is a Schottky Barrier Diode optimized for very low forward voltage drop, low leakage current and used in a wide range of DC-DC converter, clamping and protection applications in portable devices. This SOD-523 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements. It is used in LCD and keypad backlighting, camera photo flash, buck and boost DC-DC converter, reverse voltage and current protection, mobile handsets, mp3 players, digital camera and camcorders, notebook PCs & PDAs and GPS.
315mV at 100mA Very low forward voltage drop
0.8uA at 10V Low reverse current VR
Power dissipation of 170mW with minimum trace
12ns at 10mA Very high switching speed
35pF at 1.0V Low capacitance CT
AEC-Q101 qualified and PPAP capable
Pb-free, halogen free/BFR free

Show

NSR0520V2T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOD-523
Number of Positions	3 Position
Forward Voltage	480mV @500mA
Power Dissipation	200 mW
Thermal Resistance	600℃/W (RθJA)
Reverse recovery time	12 ns
Max Repetitive Reverse Voltage (Vrrm)	20V
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	2 A
Max Reverse Leakage Current (Ir)	30uA
Maximum Forward Voltage (Max)	480 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	340 mW
	Show
Size-Length	1.3 mm
Size-Width	0.9 mm
Size-Height	0.7 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	8000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
