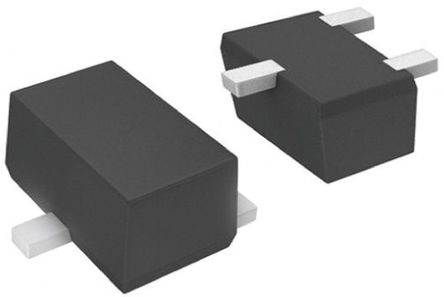

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 20V 750mA (Ta) 310mW (Ta) Surface Mount SOT-723
NTK3134NT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-723-3 |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.2 Ω |
| Polarity | N-Channel |
| Power Dissipation | 450 mW |
| Threshold Voltage | 1.2 V |
| Drain to Source Voltage (Vds) | 20 V |
| Breakdown Voltage (Drain to Source) | 20.0 V |
| Breakdown Voltage (Gate to Source) | ±6.00 V |
| Continuous Drain Current (Ids) | 890 mA |
| Rise Time | 4.8 ns |
| Input Capacitance (Ciss) | 120pF @16V(Vds) |
| Input Power (Max) | 310 mW |
| Fall Time | 7.4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 310mW (Ta) |
| Show | |
| Size-Length | 1.25 mm |
| Size-Width | 0.85 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
