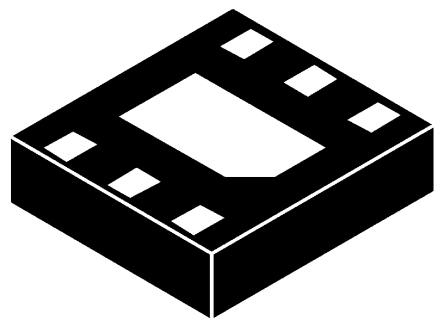

Image is for your reference only,please check specifications for details

NTLJD3119CTBG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4079350
Category:
MOSFET, MOSFET Transistor
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 20V 4.6A 65mOhm Complementary WDFN6, WDFN6 2x2, 0.65P, 3000-REEL
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NTLJD3119CTBG is a N/P-channel complementary MOSFET designed for load management devices like PDAs, Cellular Phones and Hard Drives. It is suitable for synchronous DC-to-DC conversion circuits and colour display, camera flash regulator applications.
Package with exposed drain pad for excellent thermal conduction
Footprint same as SC-88 package
Leading Edge Trench technology for low ON-resistance
1.8V Gate threshold voltage
Low profile (<0.8mm) for easy fit in thin environments

Show

NTLJD3119CTBG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.037 Ω
Polarity	N-Channel, P-Channel
Power Dissipation	2.3 W
Threshold Voltage	700 mV
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Gate to Source)	±8.00 V
Continuous Drain Current (Ids)	3.80 A, 4.60 A
Input Capacitance (Ciss)	271pF @10V(Vds)
Input Power (Max)	710 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.3 W
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
