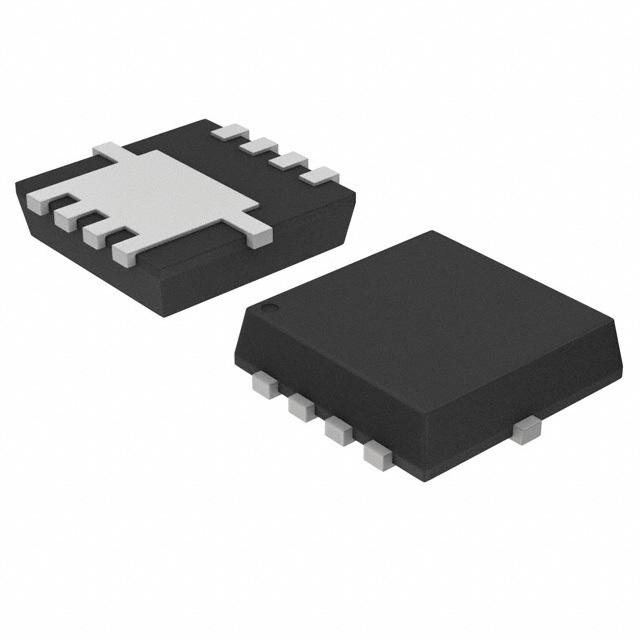

Image is for your reference only,please check specifications for details

NTTFS4C10NTAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC53987861
Category:
MOSFET, MOSFET Transistor
Package:
WDFN-8
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 30V 44A 7.4mOhm Single N-Channel u8FL, WDFN8 3.3x3.3, 0.65P, 1500-REEL
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Low RDS(on) to Minimize Conduction Losses * Low Capacitance to Minimize Driver Losses * Optimized Gate Charge to Minimize Switching Losses * These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

Show

NTTFS4C10NTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0059 Ω
Polarity	N-Channel
Power Dissipation	3.9 W
Threshold Voltage	2.2 V
Drain to Source Voltage (Vds)	30 V
Input Capacitance (Ciss)	993pF @15V(Vds)
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	790mW (Ta), 23.6W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
