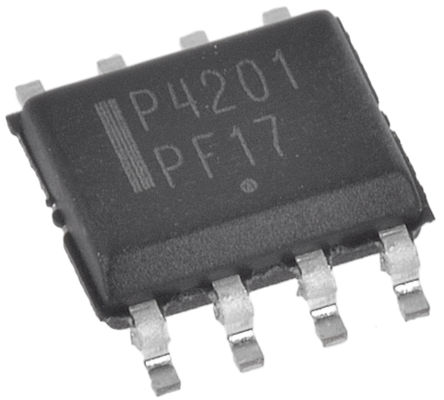

Image is for your reference only,please check specifications for details

NUP4201DR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2577700
Category:
TVS Diode
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUP4201DR2G TVS Diode, NUP42 Series, Unidirectional, 5V, 25V, SOIC, 8Pins
Stock Locations:
Availability:
1,995 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.88

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NUP4201DR2G is a low capacitance surface-mount TVS Diode for high-speed data interfaces. It is designed to protect equipment attached to high speed communication lines from ESD, EFT and lightning.
500W Peak power (8 x 20µsec waveform)
IEC 61000-4-2 (ESD) 15kV (air) 8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (lightning) 25A (8/20µs)
-55 to 150°C Operating junction temperature range

Show

NUP4201DR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance	10 pF
Breakdown Voltage	6 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	8 Position
Power Dissipation	500 W
Clamping Voltage	25 V
Test Current	1 mA
Max Breakdown Voltage	6 V
Peak Pulse Power	500 W
Min Breakdown Voltage	6 V
Reverse Breakdown Voltage	6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
