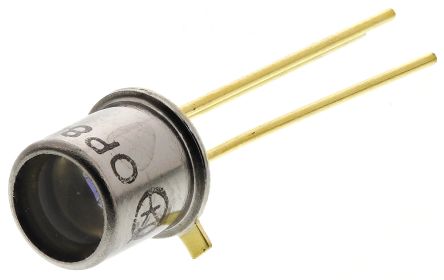

Image is for your reference only,please check specifications for details
- OP802WSL - TT Electronics/Optek Technology
-
Manufacturer:TT Electronics/Optek Technology
-
ManyChip's Part#:MC15363433
-
Category:Phototransistor
-
Package:TO-18-3
-
Datasheet:Datasheet 3D Model
-
Description:OP802 Series 890nm Viewing Angle 75° 50mA NPN Silicon Phototransistor - TO-18
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 18/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
OP802WSL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-18-3 |
| Voltage Rating (DC) | 30.0 V |
| Output Voltage | ≤30.0 V |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Wavelength | 890 nm |
| Viewing Angle | 75° |
| Polarity | NPN |
| Power Dissipation | 250 mW |
| Power Consumption | 250 mW |
| Rise Time | 7000 ns |
| Breakdown Voltage (Collector to Emitter) | 30 V |
| Input Power (Max) | 250 mW |
| Fall Time | 7000 ns |
| Fall Time (Max) | 7000 ns |
| Fall Time (Max) | 7000 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 5.84 mm |
| Size-Width | 5.84 mm |
| Size-Height | 5.13 mm |
| Lead Length | 12.7 mm |
| Material | Silicon |
| Operating Temperature | -65℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | ECL99 |
