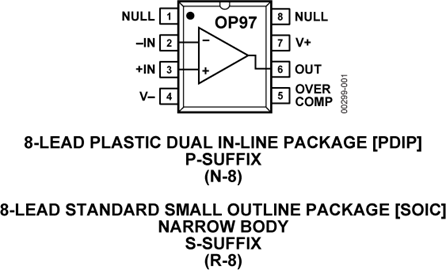

Image is for your reference only,please check specifications for details

OP97EPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1737046
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES OP97EPZ Operational Amplifier, Single, 1 Amplifier, 900kHz, 0.2V/µs, ± 2V to ± 20V, DIP, 8Pins
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OP97EPZ is a low power high precision Operational Amplifier maintains the standards of performance set by the OP07 while utilizing only 600µA supply current, less than 1/6 that of an OP07. Offset voltage is an ultralow 25µV and drift over temperature is below 0.6µV/°C. External offset trimming is not required in the majority of circuits. Improvements have been made over OP07 specifications in several areas. Notable is bias current, which remains below 250pA over the full military temperature range. The OP97 is ideal for use in precision long-term integrators or sample-and-hold circuits that must operate at elevated temperatures. Common-mode rejection and power supply rejection are also improved with the OP97, at 114dB minimum over wider ranges of common-mode or supply voltage. Outstanding PSR, a supply range specified from ±2.25 to ±20V and the minimal power requirements of the OP97 combine to make the OP97 a preferred device for portable and battery-powered instruments.
Very low bias current
114dB Minimum high common-mode rejection

Show

OP97EPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Current	380 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	132 dB
Bandwidth	900 kHz
Slew Rate	200 mV/μs
Gain Bandwidth Product	0.9 MHz
Input Impedance	25.0 GΩ
Input Offset Voltage	10 µV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	900 kHz
Gain Bandwidth	114 dB
Minimum CMRR Range	114 dB
Supply Voltage (Max)	20 V
Supply Voltage (Min)	2 V
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
