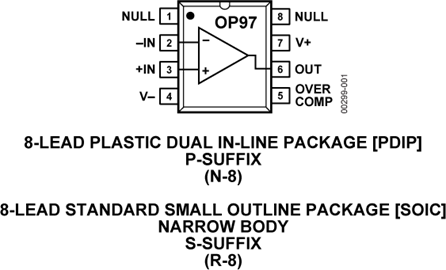

Image is for your reference only,please check specifications for details
- OP97FPZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC220452
-
Category:Operational Amplifier, OP Amp IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 900kHz, 0.2V/µs, ± 2V to ± 20V, DIP, 8Pins
-
Stock Locations:
-
Availability:224 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.29
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The OP97 is a low power alternative to the industry-standard OP07 precision amplifier. The OP97 maintains the standards of performance set by the OP07 while utilizing only 600 μA supply
- current, less than 1/6 that of an OP07. Offset voltage is an ultralow 25 μV, and drift over temperature is below 0.6 μV/°C. External offset trimming is not required in the majority of circuits.
- Improvements have been made over OP07 specifications in several areas. Notable is bias current, which remains below 250 pA over the full military temperature range. The OP97 is ideal for use in precision long-term integrators or sample-and hold circuits that must operate at elevated temperatures.
- FEATURES
- Low supply current: 600 μA maximum
- OP07 type performance
- Offset voltage: 20 μV maximum
- Offset voltage drift: 0.6 μV/°C maximum
- Very low bias current
- 25°C: 100 pA maximum
- −55°C to +125°C: 250 pA maximum
- High common-mode rejection: 114 dB minimum
- Extended industrial temperature range: −40°C to +85°C
OP97FPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 15.0 V |
| Supply Current | 380 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 132 dB |
| Bandwidth | 900 kHz |
| Slew Rate | 200 mV/μs |
| Gain Bandwidth Product | 900 kHz |
| Input Impedance | 25.0 GΩ |
| Input Offset Voltage | 30 µV |
| Input Bias Current | 30 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 900 kHz |
| Minimum CMRR Range | 110 dB |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | Yes |
