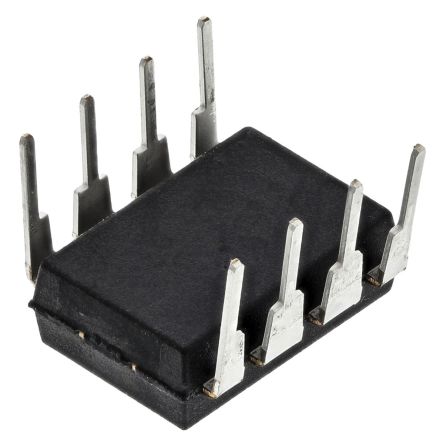

Image is for your reference only,please check specifications for details

OPA1013CN8 - TI
Manufacturer:
TI
ManyChip's Part#:
MC11874237
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Dual, 2 Amplifier, 600kHz, 0.35V/µs, ± 2V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.46

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

OPA1013CN8 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Current	350 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	97 dB
Input Offset Drift	400 nV/K
Bandwidth	600 kHz
Slew Rate	350 mV/μs
Gain Bandwidth Product	600 kHz
Input Offset Voltage	50 µV
Input Bias Current	7 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	97 dB
Minimum CMRR Range	97 dB
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2017/07/07
