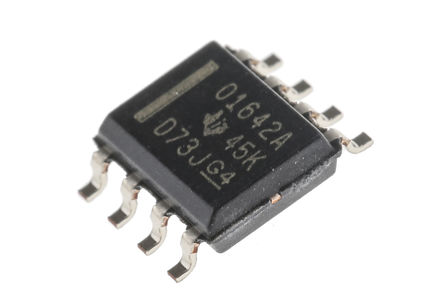

Image is for your reference only,please check specifications for details

OPA1642AID - TI
Manufacturer:
TI
ManyChip's Part#:
MC13113252
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA1642AID Operational Amplifier, Dual, 2 Amplifier, 11MHz, 20V/µs, 5V to 36V, SOIC, 8Pins
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.27

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA1642AID is a dual sound-plus high-performance JFET-input Operational Amplifier for use with High-End A/V receivers. The OPA1642 rail-to-rail output swing allows increased headroom, making this device. Features include 5.1nV/√Hz noise, low THD+N (0.00005%), a low input bias current of 2pA and low quiescent current of 1.8mA per channel. The ultralow distortion low-noise operational amplifier is unity-gain stable and provide excellent dynamic behaviour over a wide range of load conditions. The dual version features completely independent circuitry for lowest crosstalk and freedom from interactions between channels, even when overdriven or overloaded.
Superior sound quality
Unity gain stable
No phase reversal
Rail-to-rail output
0.00005% at 1kHz Ultralow distortion
126dB Typical CMRR
Green product and no Sb/Br

Show

OPA1642AID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	1.8 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120 dB
Input Offset Drift	0.00 V/K
Bandwidth	11 MHz
Slew Rate	20.0 V/μs
Gain Bandwidth Product	11 MHz
Gain	134 dB
Input Offset Voltage	1 mV
Input Bias Current	2 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	11 MHz
Minimum CMRR Range	120 dB
Supply Voltage	5V ~ 36V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
