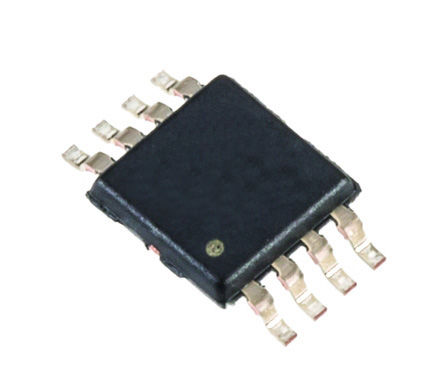

Image is for your reference only,please check specifications for details

OPA2180IDGK - TI
Manufacturer:
TI
ManyChip's Part#:
MC44839926
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2180IDGK Operational Amplifier, Dual, 2 Amplifier, 2MHz, 0.8V/µs, 4V to 36V, VSSOP, 8Pins
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.63

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA2180IDGK is a low noise Operational Amplifier with rail-to-rail output. The operational amplifier uses zero-drift techniques to simultaneously provide low offset voltage (75µV) and near zero-drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing within 18mV of the rails. The input common-mode range includes the negative rail.
Input includes negative rail
RFI filtered inputs
Excellent DC precision - 126dB PSRR and 114dB CMRR
0.1µV/°C Zero-drift
10nV/√Hz Low noise
120dB Open-loop gain (AOL)
525µA Maximum quiescent current
250pA Typical low bias current
Green product and no Sb/Br

Show

OPA2180IDGK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	450 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	104dB ~ 114dB
Input Offset Drift	100 nV/K
Bandwidth	2 MHz
Slew Rate	800 mV/μs
Gain Bandwidth Product	2 MHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2 MHz
Minimum CMRR Range	104 dB
Supply Voltage	4V ~ 36V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
