OPA2241PA TI - Operational Amplifier, OP Amp IC

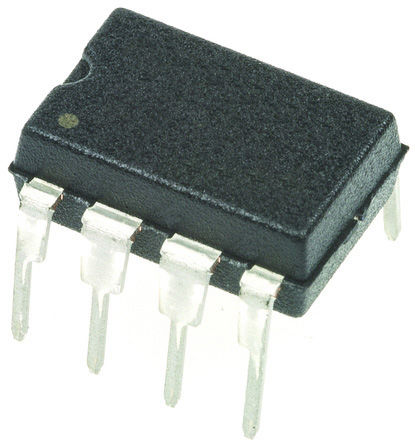

Image is for your reference only,please check specifications for details

OPA2241PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC11176529
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Операционный усилитель, сдвоенный, 2 усилителя, 35 кГц, 0,01 В/мкс, ±1,35 В - ±18 В, DIP, 8 выводов
Stock Locations:
Availability:
216 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.95

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ОПИСАНИЕ
Серии OPA241 и OPA251 специально разработаны для портативных устройств с батарейным питанием. Помимо очень низкого энергопотребления (25 мкА), эти усилители обладают низким напряжением смещения, выходным сигналом типа «rail-to-rail» (от шины до шины), высоким коэффициентом подавления синфазного сигнала и высоким коэффициентом усиления без обратной связи.
ОСОБЕННОСТИ
● Микромощность: IQ = 25 мкА
● ОДНОПОЛЯРНОЕ ПИТАНИЕ
● ВЫХОДНОЙ СИГНАЛ ТИПА «RAIL-TO-RAIL» (в пределах 50 мВ)
● ШИРОКИЙ ДИАПАЗОН ПИТАНИЯ
Однополярное питание: от +2,7 В до +36 В
Двуполярное питание: от ±1,35 В до ±18 В
● НИЗКОЕ НАПРЯЖЕНИЕ СМЕЩЕНИЯ: макс. ±250 мкВ
● ВЫСОКИЙ КОЭФФИЦИЕНТ ПОДАВЛЕНИЯ СИНФАЗНОГО СИГНАЛА: 124 дБ
● ВЫСОКИЙ КОЭФФИЦИЕНТ УСИЛЕНИЯ БЕЗ ОБРАТНОЙ СВЯЗИ: 128 дБ
● ОДИНАРНЫЕ, СДВОЕННЫЕ И СЧЕТВЕРЕННЫЕ
ОБЛАСТИ ПРИМЕНЕНИЯ
● ПРИБОРЫ С БАТАРЕЙНЫМ ПИТАНИЕМ
● ПОРТАТИВНЫЕ УСТРОЙСТВА
● МЕДИЦИНСКИЕ ПРИБОРЫ
● ИЗМЕРИТЕЛЬНОЕ ОБОРУДОВАНИЕ

Show

OPA2241PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Current	30 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	80 dB
Input Offset Drift	400 nV/K
Bandwidth	35 kHz
Slew Rate	10.0 mV/μs
Gain Bandwidth Product	0.035 MHz
Input Offset Voltage	100 µV
Input Bias Current	4 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.035 MHz
Minimum CMRR Range	80 dB
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
