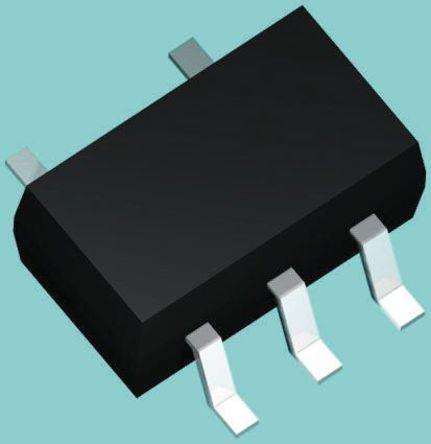

OPA376AIDCKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC12867903
Category:
Operational Amplifier, OP Amp IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA376AIDCKT Operational Amplifier, Single, 1 Amplifier, 5.5MHz, 2V/µs, 2.2V to 5.5V, SC-70, 5Pins
Stock Locations:
Availability:
1,810 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA376AIDCKT is a precision low-noise Operational Amplifier with e-trim™, offering outstanding DC precision and AC performance. Rail-to-rail input and output, low offset (25µV, maximum), low noise (7.5nV/√Hz), quiescent current of 950µA (maximum) and a 5.5MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation.
0.1 to 10Hz noise of 0.8µVPP
7.5nV/√Hz at 1kHz Low noise
760µA Typical quiescent current
5µV Typical low offset voltage
Green product and no Sb/Br

Show

OPA376AIDCKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Current	760 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	76 dB
Input Offset Drift	320 nV/K
Bandwidth	5.5 MHz
Slew Rate	2.00 V/μs
Gain Bandwidth Product	5.5 MHz
Input Offset Voltage	5 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	5.5 MHz
Minimum CMRR Range	76 dB
Supply Voltage	2.2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.2 V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
