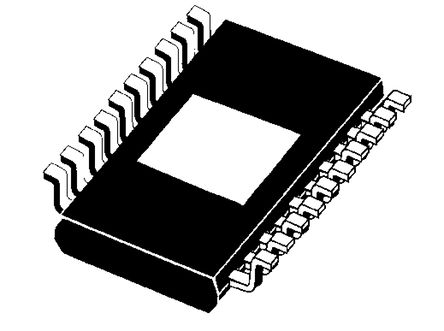

Image is for your reference only,please check specifications for details
- OPA564AIDWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5664696
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:1.5A, 24V, 17MHz, Power Operational Amplifier 20-SO PowerPAD -40℃ to 85℃
-
Stock Locations:
-
Availability:204 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.89
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA564AIDWP is a high-current Operational Amplifier ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. This monolithic integrated circuit provides high reliability in demanding powerline communication applications. At maximum output current, a wide output swing provides a 20VPP (IOUT=1.5A) capability with a nominal 24V supply. The OPA564 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided - one indicates current limit and the second shows a thermal over-temperature condition. It also has an enable/shutdown pin that can be forced low to shut down the output, effectively disconnecting the load.
- Fully protected - Thermal shutdown and adjustable current limit
- Output enable/shutdown control
- Diode for junction temperature monitoring
- High speed - 1.3MHz full-power bandwidth at 10VPP
- 10µV/°C Typical offset drift
- 90dB Typical CMRR
- Green product and no Sb/Br
OPA564AIDWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Output Current | 1.50 A |
| Supply Current | 39 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 20 Position |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 10.0 µV/K |
| Bandwidth | 17 MHz |
| Slew Rate | 40.0 V/μs |
| Gain Bandwidth Product | 17 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 10 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 17 MHz |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 24 V |
| Supply Voltage (Min) | 7 V |
| Show | |
| Size-Length | 12.95 mm |
| Size-Width | 7.59 mm |
| Size-Height | 2.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
