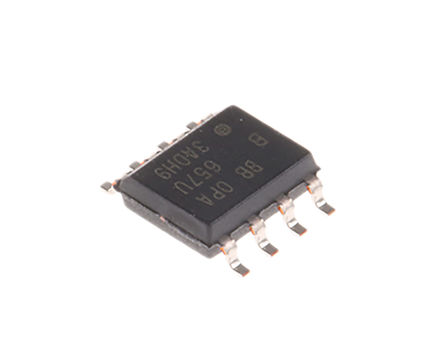

Image is for your reference only,please check specifications for details

OPA657UB - TI
Manufacturer:
TI
ManyChip's Part#:
MC4520183
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA657UB Operational Amplifier, Single, 1 Amplifier, 350MHz, 700V/µs, 10V to 12V, SOIC, 8Pins
Stock Locations:
Availability:
317 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA657UB is a high-gain bandwidth low-distortion voltage-feedback Operational Amplifier with a low-voltage noise JFET-input stage to offer a very high dynamic range amplifier for high-precision ADC (analog-to-digital converter) driving or wideband transimpedance applications. Photodiode applications see improved noise and bandwidth using this decompensated, high-gain bandwidth amplifier. Very low level signals can be significantly amplified in a single OPA657 gain stage with exceptional bandwidth and accuracy. Having a high 1.6GHz gain bandwidth product gives greater than 10MHz signal bandwidths up to gains of 160V/V (44dB). The very low input bias current and capacitance supports this performance even for relatively high source impedances. Broadband photodetector applications benefit from the low-voltage noise JFET inputs for the OPA657. The JFET input contributes virtually no current noise while for broadband applications, a low voltage noise is also required.
Available in high grade with improved DC specifications
Fast overdrive recovery
1.6GHz High gain bandwidth
±250µV Low-input offset voltage
2pA Low-input bias current
4.8nV/√Hz Low-input voltage noise
70mA High-output current

Show

OPA657UB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Supply Current	14 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	83 dB
Input Offset Drift	2.00 µV/K
Bandwidth	350 MHz
Slew Rate	700 V/μs
Gain Bandwidth Product	1600 MHz
Input Offset Voltage	100 µV
Input Bias Current	1 pA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	350 MHz
Gain Bandwidth	1.6 GHz
Minimum CMRR Range	83 dB
Supply Voltage	10V ~ 12V
Supply Voltage (Max)	6.5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
