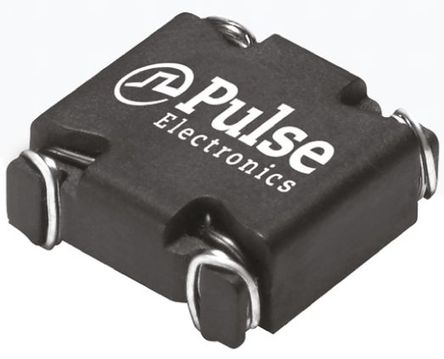

Image is for your reference only,please check specifications for details
- P0354NLT - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC2414530
-
Category:Inductor Choke
-
Package:12.7mm x 12.7mm x 5.46mm
-
Datasheet:Datasheet 3D Model
-
Description:PULSE ENGINEERING P0354NLT Choke, Common Mode, 1.17mH, 1.22A, 12.7mm x 12.7mm x 5.46mm
-
Stock Locations:
-
Availability:1,525 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.01
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The P0354NLT is a SMT Common Mode Choke designed for DC/DC converter applications.
- Solutions based on impedance, size and current
- 1000Vrms Dielectric strength
P0354NLT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 12.7mm x 12.7mm x 5.46mm |
| Current Rating | 1.22 A |
| Capacitance Tolerance | ±35 % |
| Inductance | 1.17 mH |
| Shielding | No |
| DC Resistance (DCR) | 0.2 Ω |
| Current Rating (Max) | 1.22 A |
| Operating Temperature (Max) | 120 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 200 mΩ |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 12.7 mm |
| Size-Height | 5.46 mm |
| Weight | 1.4 g |
| Operating Temperature | -40℃ ~ 120℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
