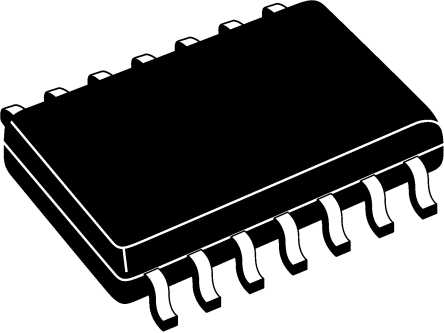

Image is for your reference only,please check specifications for details

PCM1725U - TI
Manufacturer:
TI
ManyChip's Part#:
MC28687225
Category:
Digital to Analog, DAC IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converter, 16Bit, 96KSPS, Serial, 4.5V to 5.5V, SOIC, 14Pins
Stock Locations:
Availability:
1,740 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.49

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Want to be able to convert digital audio signals into analog ones? This PCM1725U from Texas Instruments is perfect and can handle high quality signals with ease. This device"s digital interface is serial. This device is based on Delta-Sigma architecture. It has a voltage output. This DAC has a resolution of 16bit. This DAC has a minimum operating temperature of -25 °C and a maximum of 85 °C. This device comes in tube packaging. This device uses a single power supply.

Show

PCM1725U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Number of Outputs	2 Output
Supply Current	13.0 mA
Number of Channels	2 Channel
Number of Bits	16 Bit
Power Dissipation	0.09 W
Sample Rate	96 ksps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	90 mW
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
