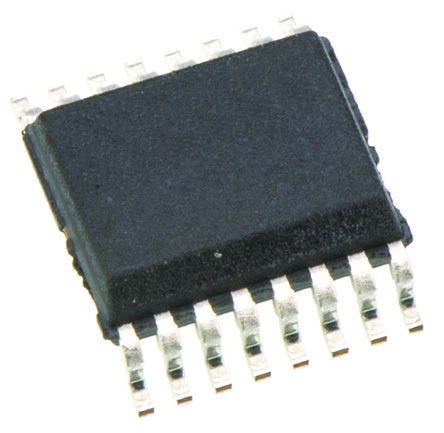

Image is for your reference only,please check specifications for details

PCM1780DBQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC3041796
Category:
Digital to Analog, DAC IC
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1780DBQ Digital to Analogue Converter, 24Bit, 192KSPS, Serial, 4.5V to 5.5V, SSOP, 16Pins
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.8

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1780DBQ is a CMOS monolithic stereo Digital-to-analog Converter (DAC) supports circuitry. The data converter use TIs enhanced multilevel delta-sigma architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1780 accepts industry standard audio data formats with 16 to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200kHz are supported. The PCM1780 provides a full set of user-programmable functions through a 3-wire serial control port, which supports register write functions. The PCM1781 provides a subset of user-programmable functions through four control pins.
4x/8x Oversampling digital filter
Software control
Digital attenuation - mode selectable
Digital de-emphasis
Digital filter roll off - sharp or slow
Soft mute
Zero flags for each output
Pin-compatible with PCM1680
Green product and no Sb/Br

Show

PCM1780DBQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Number of Outputs	2 Output
Supply Current	30 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	24 Bit
Power Dissipation	0.2 W
Sample Rate	200 ksps
Power Consumption	80.0 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	200 mW
Number of DACs	2 DAC
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
