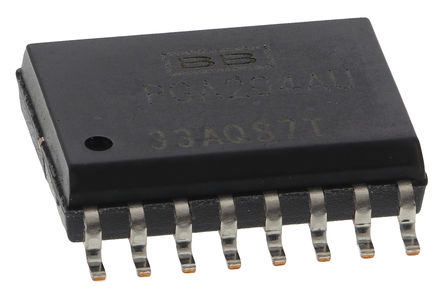

PGA204AU - TI
Manufacturer:
TI
ManyChip's Part#:
MC9832656
Category:
Instrumentation Amplifier IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA204AU Instrument Amplifier, 1 Amplifier, 125μV, 0.07V/µs, 1MHz, ± 4.5V to ± 18V, SOIC
Stock Locations:
Availability:
12 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 144

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA204 and PGA205 are low cost, general purpose programmable-gain instrumentation amplifiers offering excellent accuracy. Gains are digitally selected: PGA2041, 10, 100, 1000, and PGA2051, 2, 4, 8V/V. The precision and versatility, and low cost of the PGA204 and PGA205 make them ideal for a wide range of applications.
Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1. Internal input protection can withstand up to ±40V on the analog inputs without damage.
The PGA204 and PGA205 are laser trimmed for very low offset voltage (50µV), drift (0.25µV/°C) and high common-mode rejection (115dB at G=1000). They operate with power supplies as low as ±4.5V, allowing use in battery operated systems. Quiescent current is 5mA.
The PGA204 and PGA205 are available in 16-pin plastic DIP, and SOL-16 surface-mount packages, specified for the &3150;40°C to +85°C temperature range.

Show

PGA204AU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Operating Voltage	9V ~ 36V
Supply Current	5.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	110 dB
Quiescent Current	5.20 mA
Bandwidth	1 MHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	125 µV
Input Bias Current	500 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1 MHz
Minimum CMRR Range	75 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	9 V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
