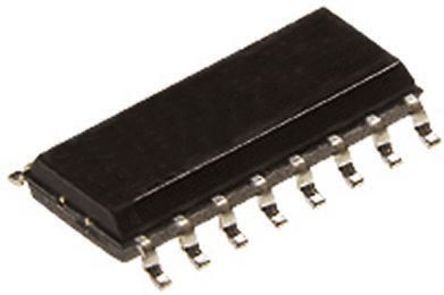

Image is for your reference only,please check specifications for details

PGA2311UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC2137733
Category:
Active Chip
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA2311UA. Audio Control, Volume, ± 4.75V to ± 5.25V, Serial, SPI, SOIC, 16Pins, -40℃
Stock Locations:
Availability:
1,840 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.67

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA2311UA is a ±5V Stereo Audio Volume Control is a high-performance stereo audio volume control designed for professional and high-end consumer audio systems. Using high performance operational amplifier stages internal to the PGA2311 yields low noise and distortion, while providing the capability to drive 600 loads directly without buffering. The 3-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2311 device.
Digitally-controlled analogue volume control
Wide gain and attenuation range
Low noise and distortion
Noise-free level transitions
-130dBFS Low inter-channel crosstalk
Pin and software compatible with the crystal
Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PGA2311UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	-5.00 V
Number of Channels	2 Channel
Number of Positions	16 Position
Gain Bandwidth Product	10 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
