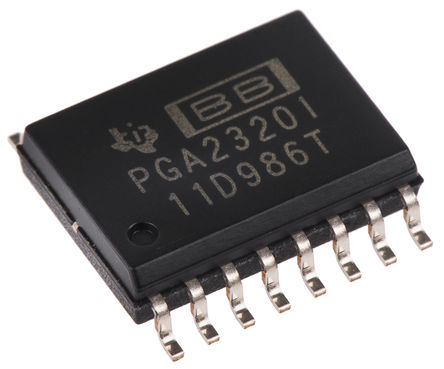

PGA2320IDW - TI
Manufacturer:
TI
ManyChip's Part#:
MC1572263
Category:
Active Chip
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA2320IDW Audio Control, Volume, 4.5V to 5.5V, ± 4.5V to ± 15.5V, Serial, SOIC, 16Pins, -40℃
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.19

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA2320IDW is a high-performance, Stereo Audio Volume Control, ability to operate from ±15V analogue power supplies enables the PGA2320IDW to process input signals with large voltage swings, thereby preserving the dynamic range available in the overall signal path. Using high performance operational amplifier stages internal to the PGA2320IDW yields low noise and distortion, while providing the capability to drive 600 loads directly without buffering. The three-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2320 devices.
Digitally-controlled analogue volume control
Two independent audio channels
Serial control interface
Zero crossing detection
Mute function
+31.5dB to -95.5dB with 0.5dB Steps wide gain and attenuation range
Low noise and distortion
120dB Dynamic range
0.0003% THD + N at 1kHz
-126dBFS Low interchannel crosstalk
Noise-free level transitions
±15V Analogue, +5V digital power supplies
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PGA2320IDW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.00 V
Number of Channels	2 Channel
Number of Positions	16 Position
Quiescent Current	11.0 mA
Gain Bandwidth Product	1 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
