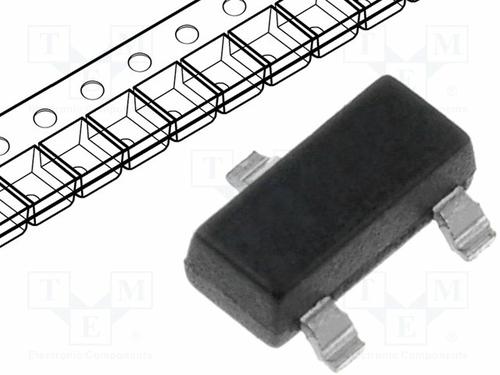

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PMBFJ112 is a N-channel symmetrical JFET encapsulated in a surface-mount plastic package. It is designed for use with analogue switches, choppers, commutators, multiplexers, thin and thick film hybrids applications.
High-speed switching
Interchangeability of drain and source connections
Low drain-source ON-state resistance at zero gate voltage

Show

PMBFJ112 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Power Rating	300 mW
Breakdown Voltage	40.0 V
Polarity	N-Channel
Power Dissipation	300 mW
Drain to Source Voltage (Vds)	40 V
Reverse Breakdown Voltage	40 V
Operating Temperature (Max)	150 ℃
	Show
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
