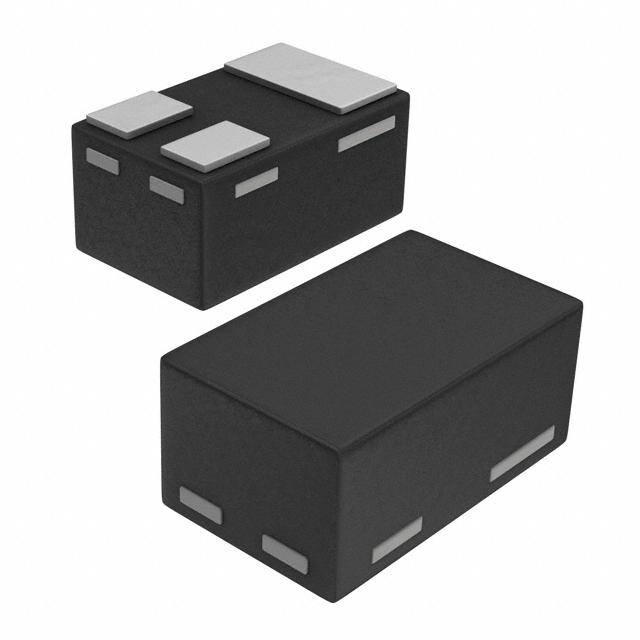

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PMZ390UNE is a N-channel enhancement-mode FET in a leadless ultra-small surface-mount plastic package using Trench MOSFET technology. It is suitable for use in relay driver, high-speed line driver, low-side load-switch and switching circuit applications.
- Low threshold voltage
- Very fast switching
- 2kV HBM ESD protection
- Leadless ultra-small SMD plastic package
- -55 to 150°C Junction temperature range
PMZ390UNEYL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-883 |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 390 mΩ |
| Power Dissipation | 715 mW |
| Threshold Voltage | 450 mV |
| Input Capacitance | 41 pF |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 41pF @15V(Vds) |
| Fall Time | 3 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 350mW (Ta), 5.43W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status |
