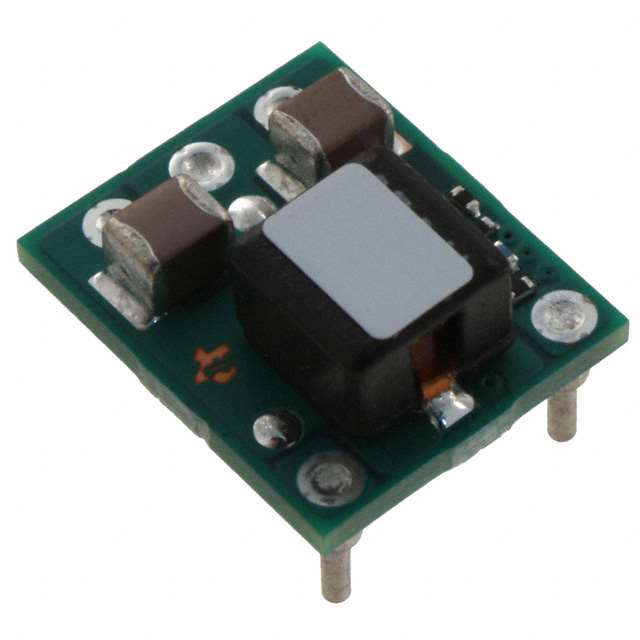

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTH08080WAZT is a 1-output 10W surface-mount non-isolated adjust Miniature Power Module delivers up to 2.25A of output current. The PTH08080W sources output current at a much higher efficiency than a TO-220 linear regulator IC, thereby eliminating the need for a heat sink. Its small size (0.5 x 0.6 in) and flexible operation creates value for a variety of applications. The input voltage range of the PTH08080W is from 4.5 to 18V, allowing operation from either a 5 or 12V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to voltages as low as 0.9V from a 5V input bus, with less than 1W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 to 5.5V, using a single external resistor. Operating features include an under-voltage lockout (UVLO), ON/OFF inhibit, overcurrent protection and over-temperature protection.
ON/OFF inhibit
Under-voltage lockout (UVLO)
Output overcurrent protection (non-latching, auto-reset)
Over-temperature protection
Highly integrated
Wide-output voltage adjust (0.9 to 5.5V)
Efficiencies up to 93%

Show

PTH08080WAZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SMD-5
Frequency	300 kHz
Supply Voltage (DC)	12.0 V
Power Rating	12 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 18.0V
Output Voltage	0.9V ~ 5.5V
Output Current	2.25 A
Number of Regulated Outputs	1 Output
Output Power	10 W
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	18 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	900 mV
Output Current (Max)	2.25 A
Output Current (Min)	0 A
Input Power (Max)	10 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Supply Voltage	12 V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 18V
	Show
Size-Length	15.24 mm
Size-Width	12.7 mm
Size-Height	8.76 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
