PTN78000AAH - TI
Manufacturer:
TI
ManyChip's Part#:
MC3119727
Category:
DC to DC Converter, DC/DC Converter
Package:
DIP-5
Datasheet:
Datasheet 3D Model
Description:

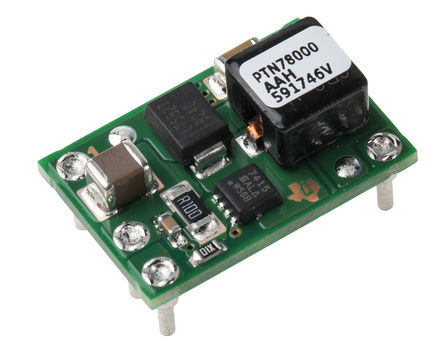

TEXAS INSTRUMENTS PTN78000AAH Non Isolated POL DC-DC Converter, Adjustable, DIP, 9W, -15V, -3V, 1.5A
Stock Locations:
Availability:
162 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1637.86

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78000AAH is a 9W Non-isolated Adjustable Buck-Boost Switching Regulator with wide output voltage and wide input voltage range. It is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. This provides high efficiency and output voltage is set using a single external resistor. This module is suited to a wide variety of general-purpose applications.
High efficiency up to 84%
Output current limit
Over-temperature shutdown
-40 to +85°C Operating temperature range

Show

PTN78000AAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	DIP-5
Supply Voltage (DC)	12.0 V
Power Rating	9 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 29.0V
Output Voltage	-3.00 V
Output Current	1.5 A
Number of Regulated Outputs	1 Output
Output Power	9 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck, Boost
Input Voltage (Max)	28.7 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	28.7 V
Input Voltage (DC Min)	7 v
Output Current (Max)	1.5 A
Input Power (Max)	9 W
Input Power (Max)	9 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	12 V
Input Voltage	7V ~ 29V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
