Description

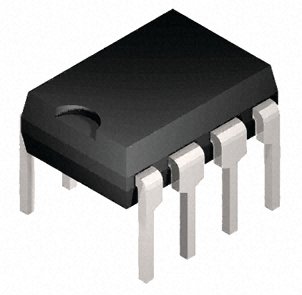

The PVT422PBF is a HEXFET® thru-hole power MOSFET Photovoltaic Relay with bounce-free operation. This photovoltaic relay is a dual-pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes international rectifiers HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator.
Linear AC/DC operation
Solid-state reliability
4000Vrms I/O isolation

Show

PVT422PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Current Rating	0.12 A
Capacitance	12 pF
Output Voltage	400 V
Load Current	120 mA
Input Current	25 mA
Isolation Voltage	4 kV
Forward Current	25 mA
Output Voltage (Max)	400 V
Input Current (Min)	25 mA
Load Current (Max)	0.12 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
Input Voltage	1.2 VDC
	Show
Size-Length	9.39 mm
Size-Height	3.42 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
