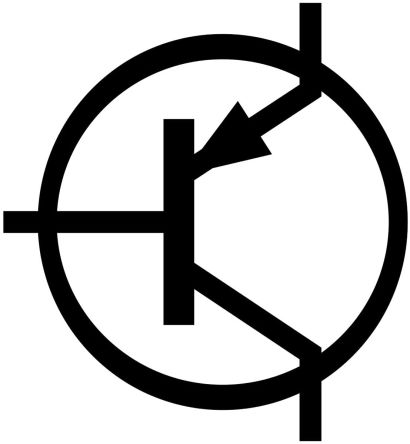

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This High Voltage PNP Bipolar Transistor is designed for general purpose amplifier applications. This device is housed in the SOT-223 package, which is designed for low power surface mount applications.
Features
---
|
Pb-Free Package is Available

Show

PZTA92 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Frequency	50 MHz
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	300 V
Continuous Collector Current	0.5A
hFE Min	40
Input Power (Max)	1 W
DC Current Gain (hFE)	25
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.7 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
