Q6006LH4 Littelfuse - TRIAC Diodes - ManyChip Electronics

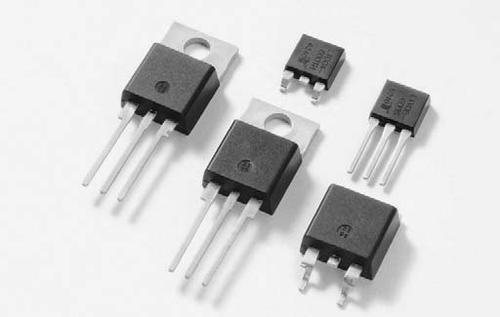

Image is for your reference only,please check specifications for details

Q6006LH4 - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC80520277
Category:
TRIAC Diodes
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE Q6006LH4 – триак, альтеристор, напряжение 600 В, ток 6 А, тип корпуса TO-220, сила тока 35 мА, напряжение 1,3 В, мощность 0,5 Вт (1/2 Вт)
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.92

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Общие характеристики
Teccor предлагает двусторонние альтеристоры с током от 6 А до 40 А и напряжением от 200 В до 1000 В в рамках широкой линейки тиристоров компании Teccor. Альтеристоры Teccor специально разработаны для использования в устройствах, обрабатывающих высокоиндуктивные нагрузки. Специальный чип обеспечивает такие же характеристики, как два тиристора соединенных параллельно (наизобратно), что позволяет получить лучшее поведение при отключении, чем у стандартного триака. Альтеристор может переходить из состояния блокировки в состояние проводимости как при положительном, так и при отрицательном напряжении AC, с возможностью работы в квадрантах I, II и III.
Характеристики
Соответствует стандарту RoHS
Высокая способность к перегрузкам
Губочные соединения
Изоляция 2500 В для корпусов L, J и K
Высокий уровень изменения напряжения dv/dt при коммутации
Высокий уровень статического dv/dt

Show

Q6006LH4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	6.00 A
Holding Current	35 mA
Holding Current (Max)	35 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bag
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
