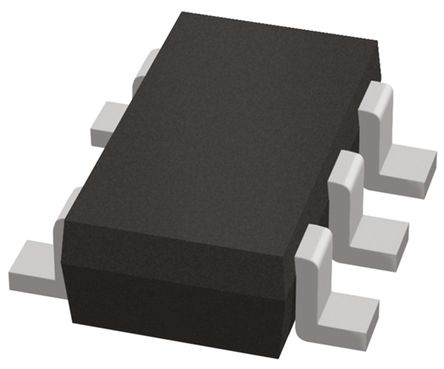

QS5U28TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Voltage Rating (DC)	-20.0 V
Current Rating	-2.00 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	125 mΩ
Polarity	P-Channel
Power Dissipation	1.25 W
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Continuous Drain Current (Ids)	2.00 A
Rise Time	16 ns
Input Capacitance (Ciss)	450pF @10V(Vds)
Input Power (Max)	900 mW
Fall Time	15 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1.25W (Ta)
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.85 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
