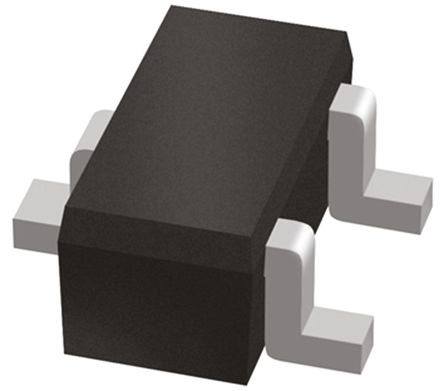

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Series Connection Schottky 30V 100mA Surface Mount SC-75, SOT-416

Show

RB548WTL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-75-3
Voltage Rating (DC)	30.0 V
Current Rating	100 mA
Number of Positions	3 Position
Forward Voltage	450mV @10mA
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	450 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	125℃ (Max)
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.7 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
