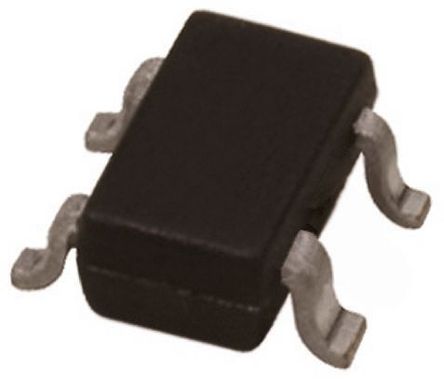

Image is for your reference only,please check specifications for details
- DB4X501K0R - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC36118850
-
Category:Schottky Diode
-
Package:Mini4-G4-B
-
Datasheet:Datasheet 3D Model
-
Description:PANASONIC ELECTRONIC COMPONENTS DB4X501K0R Small Signal Schottky Diode, Dual Isolated, 50V, 150mA, 550mV, 750mA, 125℃
-
Stock Locations:
-
Availability:10,587 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.43
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Array 2 Independent Schottky 50V 200mA Surface Mount SC-61AB
DB4X501K0R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | Mini4-G4-B |
| Number of Positions | 4 Position |
| Forward Voltage | 550mV @200mA |
| Reverse recovery time | 1.6 ns |
| Forward Current | 150 mA |
| Max Forward Surge Current (Ifsm) | 750 mA |
| Maximum Forward Voltage (Max) | 550 mV |
| Forward Current (Max) | 225 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Junction Temperature | 125℃ (Max) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | 55℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
