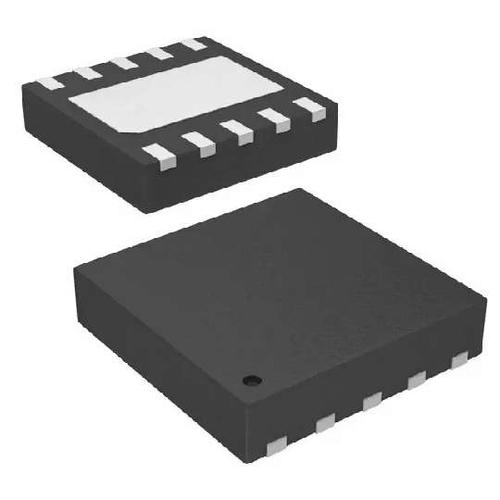

Image is for your reference only,please check specifications for details
- RCLAMP3304NATCT - Semtech Corporation
-
Manufacturer:Semtech Corporation
-
ManyChip's Part#:MC28537225
-
Category:TVS Diode
-
Package:UFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:TVS Diode, RailClamp Series, Unidirectional, 3.3V, 18V, SLP2626P10, 10Pins
-
Stock Locations:
-
Availability:2,638 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.1
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 18V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount SLP2626P10 (2.6x2.6)
RCLAMP3304NATCT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | UFDFN-10 |
| Operating Voltage | 3.3 V |
| Capacitance | 5 pF |
| Power Rating | 450 W |
| Breakdown Voltage | 3.5 V |
| Number of Positions | 10 Position |
| Clamping Voltage | 18 V |
| Peak Pulse Power | 450 W |
| Min Breakdown Voltage | 3.5 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Height | 0.57 mm |
| Operating Temperature | -55℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
