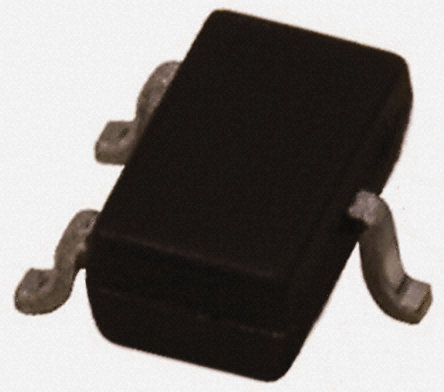

Image is for your reference only,please check specifications for details

REF3325AIDCKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC9911703
Category:
Voltage Reference
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
Series Voltage Reference 30ppm/℃ Drift, 3.9uA, SOT23-3, SC70-3 Voltage Reference V-Ref Precision 2.5V 5mA 3Pin SC-70 T/R
Stock Locations:
Availability:
328 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The REF3325 series low-power precision Voltage Reference for use with battery-powered applications. The REF33xx can be operated at a supply voltage 180mV above the specified output voltage under normal load conditions, with the exception of the REF3312, which has a minimum supply voltage of 1.8V.
Small size and low power consumption (5µA maximum)
Low dropout voltage
3.9µA Typical low supply current
110mV Typical extremely low dropout voltage
±5mA High output current
Green product and no Sb/Br

Show

REF3325AIDCKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Capacitance Tolerance	±0.15 %
Input Voltage (DC)	2.70V ~ 5.50V
Output Voltage	2.5 V
Output Current	5 mA
Supply Current	8.5 µA
Number of Channels	1 Channel
Number of Positions	3 Position
Quiescent Current	3.90 µA
Input Voltage (Max)	7.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	2.5 V
Output Voltage (Min)	2.5 V
Output Current (Max)	5 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.15 %
Voltage Rating	2.5 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
