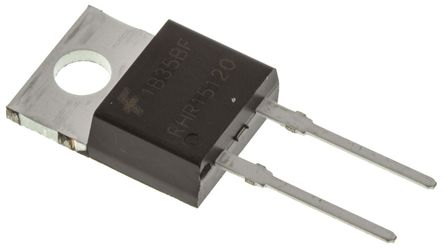

RHRP15120 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9382368
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
Standard Diodes, Rectifiers - Single TO-220-2L 1200V (1.2kV) 15A Through Hole
Stock Locations:
Availability:
1,865 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RHRP15120 is a Hyperfast Diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended to be used as freewheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
High reliability
Avalanche energy rated
1200VDC Blocking voltage
100W Maximum power dissipation
1.5°C/W Junction to case thermal resistance

Show

RHRP15120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	1.20 kV
Current Rating	15.0 A
Capacitance	55.0 pF
Output Current	≤15.0 A
Load Current	15 A
Forward Voltage	3.2 V
Polarity	Standard
Thermal Resistance	1.5℃/W (RθJC)
Reverse recovery time	75 ns
Forward Current	15 A
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	3.2 V
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.65 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
