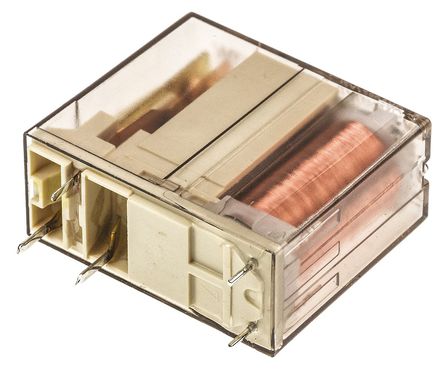

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **TE Connectivity RPII Series PCB Power Relay**
- RPII series PCB power relays with 500mW coil power available with SPST, SPDT and DPDT contact configurations. Part numbers RP3-XXXX and RP4-XXXX are flux proof. Part numbers RP7-XXXX and RP8-XXXX are wash tight.
RP418024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Current Rating | 8 A |
| Input Voltage (DC) | 24.0 V |
| Contacts Type | SPDT |
| Power Consumption | 500 mW |
| voltage rating | 2.40 V |
| Contact Current Rating | 12 A |
| Coil Voltage | 24 VDC |
| Coil Current | 21.8 mA |
| Coil Power (DC) | 500 mW |
| Coil Resistance | 1.1 kΩ |
| Carry Current | 12.0 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 500 mW |
| Input Power (Max) | 3 KVA |
| Switching Current (Max) | 20 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.6 mm |
| Size-Height | 25.5 mm |
| Contact Material | Silver Cadmium Oxide |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bar |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Non-Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
