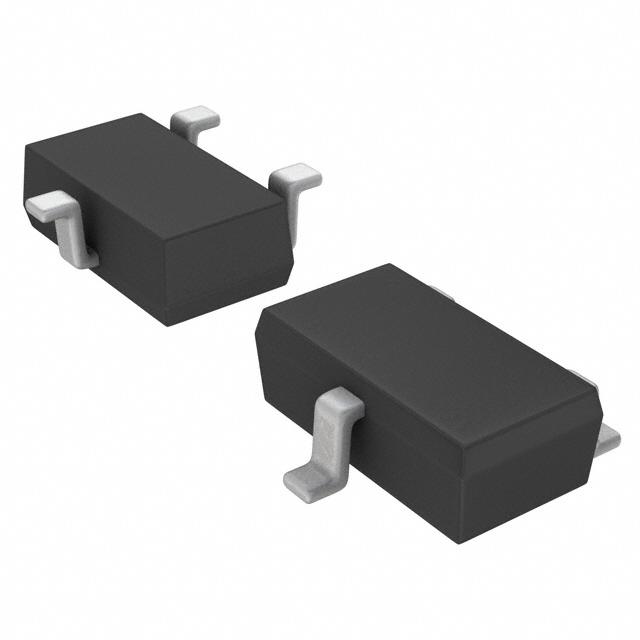

- P-Channel 30V 1.5A (Ta) 1W (Ta) Surface Mount TSMT3
RSR015P03TL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | -30.0 V |
| Current Rating | -1.50 A |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 235 mΩ |
| Polarity | P-Channel |
| Power Dissipation | 1 W |
| Threshold Voltage | 2.5 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Continuous Drain Current (Ids) | 1.50 A |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 190pF @10V(Vds) |
| Input Power (Max) | 1 W |
| Fall Time | 6 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1W (Ta) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.85 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
