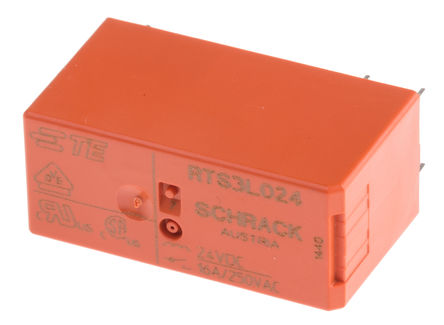

Image is for your reference only,please check specifications for details
- RTS3L024 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC22363803
-
Category:Power Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:Power Relay 24VDC 16A SPST-NO (( 29mm 12.7mm 16mm)) Through Hole
-
Stock Locations:
-
Availability:902 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.55
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RTS3L024 is a Power PCB Relay, inrush power with DC coil. This RT1-series relay has 1-form-A (1NO) AgSnO2 contact with 16mm high. Standard monostable coil version without test lab. Typical applications such as lighting systems, movement sensors, filament and incandescent lamp loads, motors.
- PCB terminal type
- Reinforced insulation
- Class F coil insulation
- -40 to 85°C Ambient temperature range
RTS3L024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP |
| Current Rating | 16 A |
| Contacts Type | SPST-NO |
| Coil Voltage | 24 VDC |
| Coil Current | 16.67 mA |
| Coil Power (DC) | 400 mW |
| Coil Resistance | 1.44 kΩ |
| Coil Voltage (DC) | 24 V |
| Switching Current (Max) | 16 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 29 mm |
| Size-Height | 16 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
