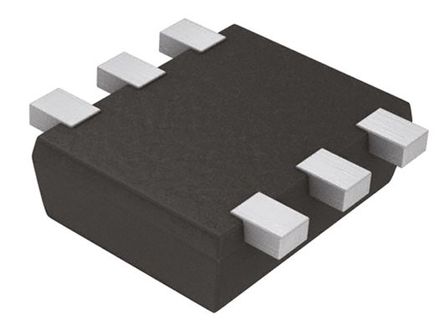

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RUL035N02 Series 20 V 43 mOhm 3.5 A SMT N-Channel Power Mosfet - TUMT-6
RUL035N02TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-363-6 |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.031 Ω |
| Polarity | N-Channel |
| Power Dissipation | 1 W |
| Threshold Voltage | 1 V |
| Drain to Source Voltage (Vds) | 20 V |
| Continuous Drain Current (Ids) | 3.5A |
| Rise Time | 20 ns |
| Input Capacitance (Ciss) | 460pF @10V(Vds) |
| Input Power (Max) | 1 W |
| Fall Time | 50 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 320mW (Ta) |
| Show | |
| Size-Length | 2.1 mm |
| Size-Width | 1.8 mm |
| Size-Height | 0.82 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
