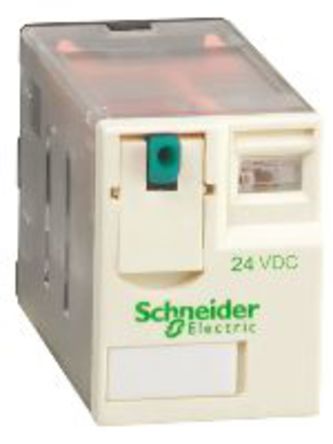

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**RXM Series Miniature Relays without LED**
The compact Zelio RXM miniature relays without LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.

Show

RXM3AB1BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Plug In
Number of Pins	11 Pin
Case/Package	-
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	10 A
Contacts Type	3PDT
Contact Current Rating	10 A
Coil Voltage	24 VDC
Coil Current	36.92 mA
Coil Resistance	650 Ω
Carry Current	10.0 A
Coil Power	900 mW
Input Power (Max)	280W, 2.5KVA
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	21 mm
Size-Height	27 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 55℃
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17
