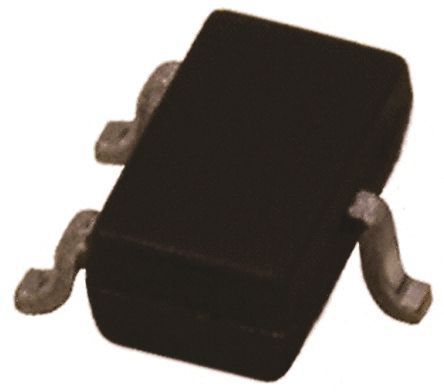

Image is for your reference only,please check specifications for details

SBAV99WT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6100076
Category:
Schottky Diode
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
ON Semi SBAV99WT1G, Dual SMT Diode, Series, 70V 715mA, 6ns, 3Pin SC-70
Stock Locations:
Availability:
72,918 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The switching diode is designed for high speed switching applications. This dual diode device contains two diodes in series encapsulated in a SC-70/SOT-323 surface mount package.
Features
---
|
These Devices are Pb-Free and are RoHS Compliant
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

SBAV99WT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	1.25 V
Power Dissipation	200 mW
Reverse recovery time	6 ns
Forward Current	215 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	715 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
