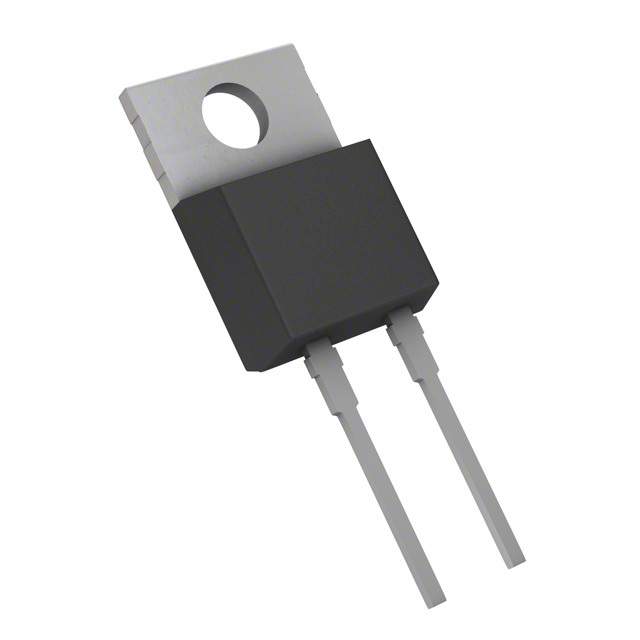

Image is for your reference only,please check specifications for details

SCS210AGC - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC43945131
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
ROHM SCS210AGC Silicon Carbide Schottky Diode, Barrier, 650V Series, Single, 650V, 10A, 15NC, TO-220AC
Stock Locations:
Availability:
265 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SCS210AGC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.55V @10A
Power Dissipation	75 W
Thermal Resistance	1.9℃/W (RθJC)
Reverse recovery time	0 ns
Forward Current	10 A
Maximum Forward Voltage (Max)	1.55V @10A
Forward Current (Max)	10 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.8 mm
Size-Width	4.45 mm
Size-Height	15.37 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
